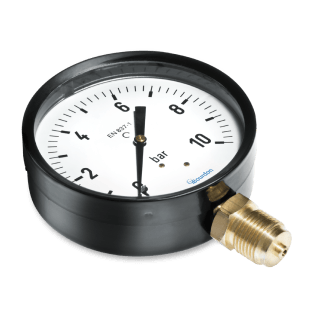

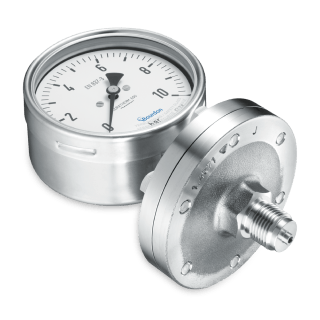

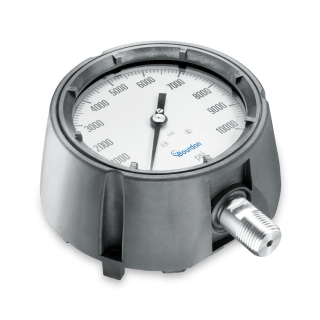

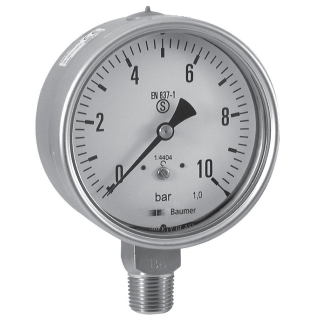

Baumer Pressure Gauge

Pressure gauges are instruments for measuring and displaying the pressure of a medium. Pressure gauges are pressure measuring instruments with elastic pressure elements, which have been used millions of times in various industrial applications. Depending on the area of application of the pressure gauge, Bourdon tubes, diaphragm elements or capsule elements are used as pressure elements.

DATASHEET

Special Features

External zero adjustment (optional)
Stainless steel case & measuring system
Socket directly welded to case
Dry and liquid filled version
Standard followed EN 837-1 (for NS 100, 150 & 250 mm)
CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm)

Application

Food & beverage
Pharmaceutical
Cryogenics
Pumps
Diesel engines & Refrigerating plants
Chemical & Petrochemical industries
Environments & gaseous or liquid media that will not obstruct the pressure system.

Hydro-cleaning machines
Presses
Engine compressors
Turbines
Diesel engines & Refrigerating plants
Suitable for corrosive
Conventional & nuclear power plants

Features and Benefits

Dial sizes: 40, 50, 63, 80, 100, 130 and 160 mm
Wetted parts copper alloy, stainless steel or monel
Process connections e.g. G ¼, G ½, ½ NPT, 7-16 UNF, M20x1,5 etc.
Measuring ranges from 0…6 mbar to 0….1600 bar
Scales in bar, mbar, psi, kPa, MPa, mmH2O, inHG etc.
Industry standards: EN837 and ASME B40.100
Approvals: ATEX, Lloyd´s register, NACE MRO103/175, EAC
Damping fluids glycerin, silicone, paraffin
Safety gauge: S1 or S3 (EN837) or solid front (ASME B40.100)
Differential pressure gauges
Pressure gauges with mechanical or inductive contacts
Customer specific pressure gauges for many applications

Mechanical pressure gauges are easy to handle and require no external power supply. This ensures a reliable, independent and safe pressure display even if electronic measurements are no longer available
More choice, more variants. Find your product in the product selector.
